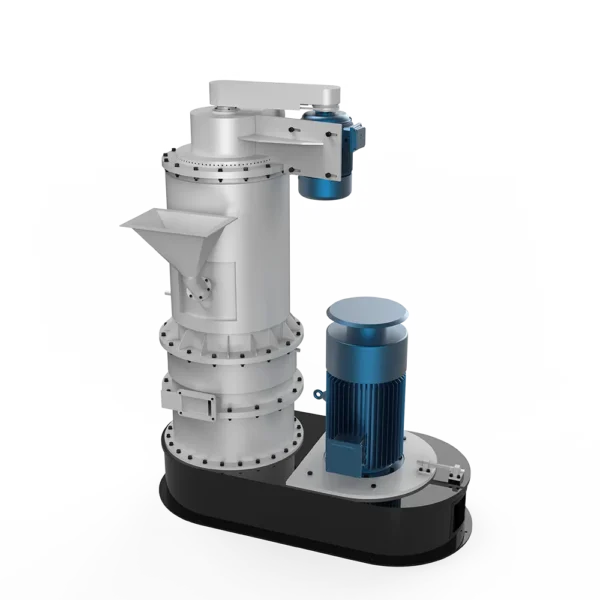

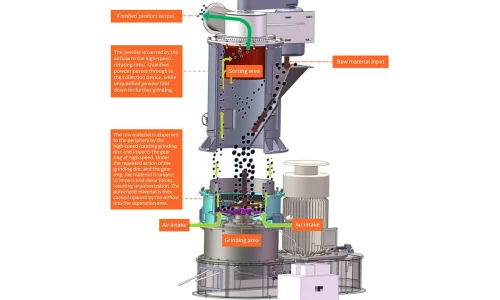

Our mechanical mill is designed specifically for anode material processing and performance improvement. It integrates multiple grinding mechanisms including impact, shear, and compression, handling feed sizes below 10 mm with high efficiency. We have equipped the system with advanced airflow channels and a state-of-the-art classifier, allowing product fineness to be flexibly adjusted within 5–75μm. With reducer-driven transmission and the material-layer grinding principle, our machine operates with low energy consumption and real-time classification to avoid over-grinding. The final powders are uniform in particle distribution and further stabilized through secondary classification via the classifier wheel and cyclone separator. Operating under micro-negative pressure, the system is safe, environmentally friendly, and easy to maintain. In addition, our intelligent control system allows automatic adjustment and smooth operation. With our targeted main machine design and optimized system control, we help you achieve precise particle size distribution and higher yields.

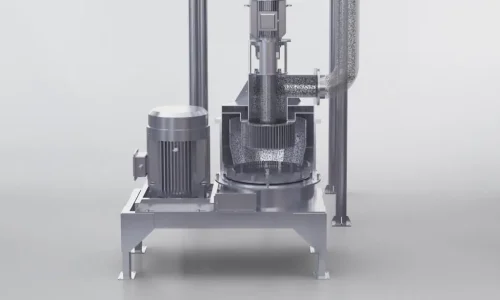

Our mechanical mill integrates impact, shear, and compression grinding to adapt to various raw materials. It efficiently handles feed sizes up to 10mm with stable grinding performance.
With an advanced classification system, product fineness is controlled between 5–45μm with uniform distribution. Classifier power from 30–75kW ensures efficient separation across all models.
With main motor power ranging from 132–355kW and material-layer grinding, our mills minimize energy use while delivering continuous production capacity from 0.3–8 t/h.
Equipped with a PLC-based intelligent control system, our mills allow automatic adjustment and remote monitoring, ensuring long-term stability, easy operation, and user-friendly maintenance.
Operating under micro-negative pressure and equipped with cyclone dust collection, the system ensures effective dust control, maintaining a clean and safe workshop environment.
Thanks to targeted main machine design and advanced classifier wheel structure, our mills deliver higher yield while ensuring long-term stability of Dv50 and Dv90 particle size control.
| Model | ZD-JXM-1000 | ZD-JXM-2000 | ZD-JXM-3000 |
| Grinding chamber volume (L) | 1000 | 2000 | 3000 |
| Main motor power (kW) | 160 | 250 | 355 |
| Classification power (kW) | 30 | 45 | 75 |
| Feed particle size (mm) | <10 | <10 | <10 |
| Finished product fineness (µm) | 5-75 | 5-75 | 5-75 |
| Production capacity (t/h) | 0.4-1 | 0.6-2 | 0.8-3 |
| System dimensions (m) | 16 x 4 x 7.8 | 18 x 4 x 7.8 | 20 x 4 x 7.8 |
Tell us your material, capacity, and process needs — we’ll tailor the right solution for your production line.
